Trek Domane SLR 9 AXS Gen 4 - 2025
Details

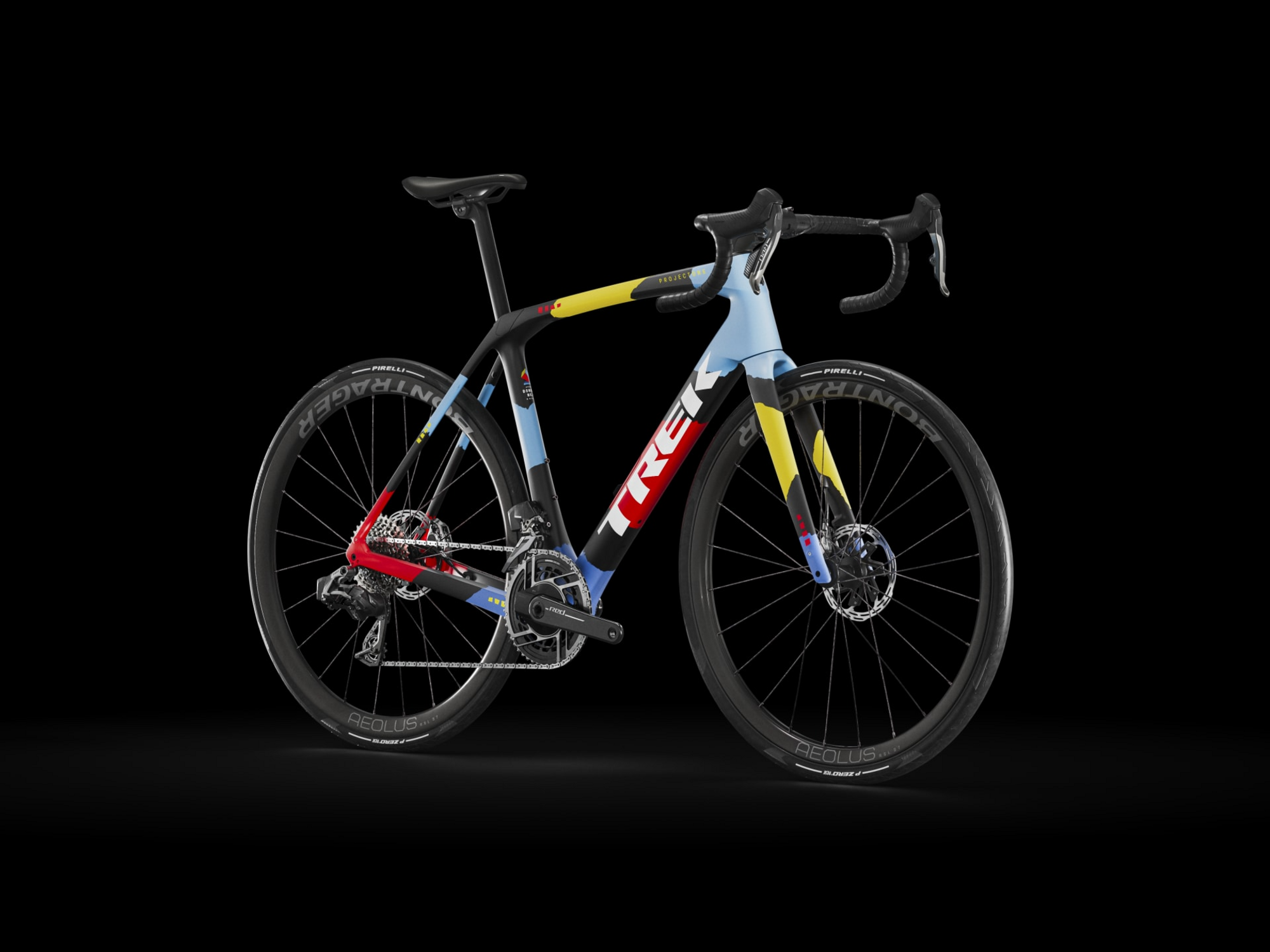

Domane SLR 9 AXS is our top-of-the-line, ultralight carbon endurance road bike decked out with the best parts for a fast, high-performance ride. You get our highest-level OCLV Carbon frame with rear IsoSpeed, SRAM's new RED AXS electronic drivetrain, and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials, and versatile 38c tire clearance to keep you floating on rough roads and light gravel.
IT'S RIGHT FOR YOU IF…
You want a seriously capable bike on the tarmac that doesn't back down from endurance race days, and you're not willing to settle for less. You're looking for the most advanced endurance road bike frame we offer, with the added benefit of a wireless electronic SRAM RED AXS drivetrain for fast, precision shifting in any condition.
THE TECH YOU GET
An ultralight and refined 800 Series OCLV Carbon frame and fork with rear IsoSpeed, integrated internal storage, and top tube mounts. It's equipped with SRAM RED AXS wireless electronic drivetrain, power meter cranks for monitoring performance metrics, powerful flat-mount disc brakes, Aeolus Pro 37 carbon wheels, and a Bontrager Pro IsoCore handlebar that reduces vibrations from the road by 20% over a standard carbon bar.
THE FINAL WORD
Domane SLR 9 AXS delivers our highest-end Domane carbon frame and race-ready parts like SRAM RED wireless drivetrain, and fast Pirelli P Zero Race tires. You're getting tech that provides a real advantage in comfort, reliability, and speed during long races, all-day adventures, and competitive group rides.
WHY YOU'LL LOVE IT
- Domane SLR Gen 4’s rear IsoSpeed, integrated cable routing, aero Kammtail tube shapes, and our high performance 800 Series OCLV Carbon come together for an ultra-lightweight, fast, and road-smoothing ride
- SRAM's top-tier RED AXS drivetrain offers fully wireless shifting that's supremely light, precise, ergonomic, and allows for one-finger braking
- Road-smoothing IsoSpeed and clearance for up to 38mm tires absorbs fatiguing bumps in the road for a smoother, more comfortable ride
- A convenient internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures
- Included power meter crankset allows you to easily monitor power metrics
| Frame size number | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 42 | 45 | 47.5 | 50 | 52.5 | 54.8 | 56.7 | 58.6 |
| B — Seat tube angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| C — Head tube length | 11 | 13 | 14.5 | 16 | 17.5 | 19.5 | 22 | 24.5 |
| D — Head angle | 71.0° | 71.1° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° | 72.1° |
| E — Effective top tube | 50.9 | 51.9 | 53 | 54.2 | 55.4 | 56.7 | 57.9 | 59.3 |
| G — Bottom bracket drop | 8 | 8 | 8 | 8 | 7.8 | 7.8 | 7.5 | 7.5 |
| H — Chainstay length | 42 | 42 | 42 | 42 | 42 | 42.5 | 42.5 | 42.5 |
| I — Offset | 5.3 | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 | 4.8 |
| J — Trail | 6.1 | 6 | 5.9 | 5.9 | 6.1 | 6 | 5.9 | 5.9 |
| K — Wheelbase | 98.6 | 99.6 | 100.3 | 101 | 100.8 | 102.2 | 103.2 | 104.2 |
| L — Standover | 68.6 | 71.6 | 73.5 | 75.4 | 77.6 | 79.6 | 81.7 | 83.5 |
| M — Frame reach | 36.4 | 36.8 | 37.1 | 37.4 | 37.7 | 38 | 38.3 | 38.6 |
| N — Frame stack | 52.7 | 54.6 | 56.1 | 57.5 | 59.1 | 61.1 | 63.2 | 65.6 |
| Saddle rail height min (w/short mast) | 55.5 | 58.5 | 61.5 | 64 | 67 | 69 | 71 | 73 |
| Saddle rail height max (w/short mast) | 62 | 65 | 68 | 70.5 | 73.5 | 75.5 | 77.5 | 79.5 |
| Saddle rail height min (w/tall mast) | 58.5 | 61.5 | 64.5 | 67 | 70 | 72 | 74 | 76 |
| Saddle rail height max (w/tall mast) | 65 | 68 | 71 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
| Size | Rider Height | Inseam |
|---|---|---|
| 47 | 152 - 158 cm 5'0" - 5'2" |
71 - 75 cm 28" - 30" |
| 50 | 158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
| 52 | 163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
| 54 | 168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
| 56 | 174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
| 58 | 180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
| 60 | 185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
| 62 | 190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Stem | Trek RCS Pro, -7 degree, 110mm length |
| Chain | SRAM RED E1,12/13 speed |
| Frame | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
| Rotors | SRAM Paceline X, rounded, centerlock, 160mm |
| Saddle | Verse Short Pro, carbon rails, 145mm width |
| Wheels | Front: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle /, Rear: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
| Crankset | SRAM RED AXS E1, power meter, 46/33, DUB, 175mm length |
| Seatpost | KVF aero carbon seatpost, 20mm offset, 320mm length |
| Shifters | SRAM RED AXS E1 // SRAM RED AXS E1 |
| Handlebars | Bontrager Pro IsoCore VR-SF, 44cm |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Rear Derailleur | SRAM RED AXS E1, 36T max cog |
| Front Derailleur | SRAM RED AXS E1, braze-on |
| Cassette/Freewheel | SRAM RED XG-1290 E1, 10-36, 12 speed |
| Tires | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Sunburst/Trek Black / 50cm / 700c | 197216081302 | 5327093 | DOM365464944 |
| Sunburst/Trek Black / 52cm / 700c | 197216081319 | 5327094 | DOM364265204 |
| Trek Black / 60cm / 700c | 197216081432 | 5327106 | DOM288258264 |
| Metallic Red Smoke to Red Carbon Smoke / 50cm / 700c | 197216081227 | 5327085 | DOM51512224 |
| Sunburst/Trek Black / 54cm / 700c | 197216081326 | 5327095 | DOM369500284 |
| Prismatic Pearl / 52cm / 700c | 197216081159 | 5326008 | DOM332481624 |
| Sunburst/Trek Black / 58cm / 700c | 197216081340 | 5327097 | DOM367562654 |
| Metallic Red Smoke to Red Carbon Smoke / 60cm / 700c | 197216081272 | 5327090 | DOM519878784 |
| Sunburst/Trek Black / 47cm / 700c | 197216081296 | 5327092 | DOM36112814 |
| Metallic Red Smoke to Red Carbon Smoke / 47cm / 700c | 197216081210 | 5327084 | DOM514681684 |
| Sunburst/Trek Black / 60cm / 700c | 197216081357 | 5327098 | DOM362869254 |
| Trek Black / 52cm / 700c | 197216081395 | 5327102 | DOM284290914 |
| Trek Black / 62cm / 700c | 197216081449 | 5327107 | DOM286257644 |
| Prismatic Pearl / 56cm / 700c | 197216081173 | 5326010 | DOM331439394 |
| Metallic Red Smoke to Red Carbon Smoke / 56cm / 700c | 197216081258 | 5327088 | DOM512765154 |
| Prismatic Pearl / 47cm / 700c | 197216081135 | 5326006 | DOM338760014 |
| Trek Black / 58cm / 700c | 197216081425 | 5327105 | DOM287771104 |
| Trek Black / 50cm / 700c | 197216081388 | 5327101 | DOM286900744 |
| Trek Black / 56cm / 700c | 197216081418 | 5327104 | DOM285649234 |
| Prismatic Pearl / 58cm / 700c | 197216081180 | 5326011 | DOM332063844 |
| Sunburst/Trek Black / 56cm / 700c | 197216081333 | 5327096 | DOM369205684 |
| Metallic Red Smoke to Red Carbon Smoke / 52cm / 700c | 197216081234 | 5327086 | DOM511046204 |
| Metallic Red Smoke to Red Carbon Smoke / 62cm / 700c | 197216081289 | 5327091 | DOM513648544 |
| Prismatic Pearl / 62cm / 700c | 197216081203 | 5326013 | DOM33467174 |
| Prismatic Pearl / 50cm / 700c | 197216081142 | 5326007 | DOM331375334 |
| Metallic Red Smoke to Red Carbon Smoke / 54cm / 700c | 197216081241 | 5327087 | DOM516653234 |
| Trek Black / 54cm / 700c | 197216081401 | 5327103 | DOM289779264 |
| Prismatic Pearl / 54cm / 700c | 197216081166 | 5326009 | DOM337543014 |
| Prismatic Pearl / 60cm / 700c | 197216081197 | 5326012 | DOM33943454 |
| Metallic Red Smoke to Red Carbon Smoke / 58cm / 700c | 197216081265 | 5327089 | DOM512306414 |
| Trek Black / 47cm / 700c | 197216081371 | 5327100 | DOM282957244 |
| Sunburst/Trek Black / 62cm / 700c | 197216081364 | 5327099 | DOM361263024 |
