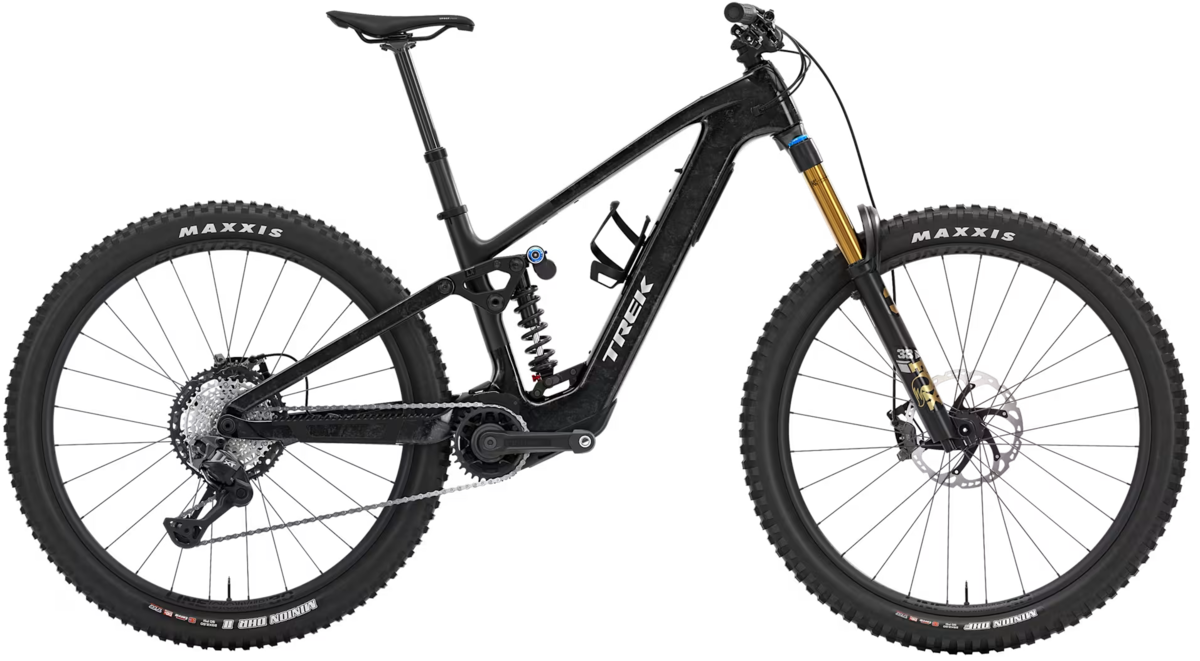

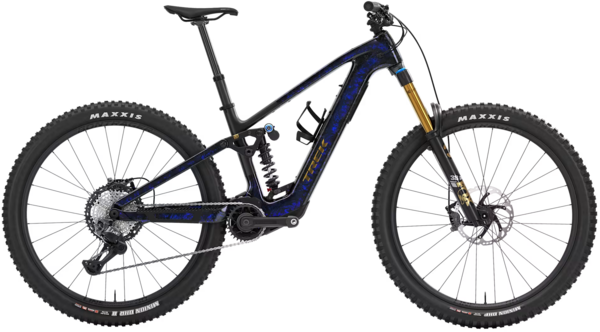

Trek Fuel+ LX 9.8 XT Di2 Gen 2 - 2026
$10,899.99
Details
Fuel+ LX 9.8 XT Di2 is a hard-hitting electric mountain bike for tackling endless laps. Its OCLV Mountain Carbon frame partners with TQ's HPR60 motor for a quiet, smooth boost, while a Fox Factory suspension package with a coil shock (160mm rear, 170mm front) keeps you feeling confident in the roughest terrain. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customizable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.
Size: S
Fox steel coil spring, 250lbs
Size: M
Fox steel coil spring, 350lbs
Size: L
Fox steel coil spring, 400lbs
Size: XL
Fox steel coil spring, 450lbs
Size: XXL
Fox steel coil spring, 500 lbs
*All measurements provided in cm unless otherwise noted.
| Size | Small | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|---|
| Wheel size | 29" | 29" | 29" | 29" | 29" |
| A — Seat tube | 37 | 40 | 42 | 45.5 | 47.5 |
| B — Seat tube angle | 71.5° | 71.5° | 71.5° | 71.6° | 71.6° |
| Effective seat tube angle | 77.0° | 76.7° | 76.3° | 75.9° | 75.4° |
| C — Head tube length | 11 | 11 | 12.5 | 14 | 15.5 |
| D — Head angle | 63.4° | 63.4° | 63.4° | 63.5° | 63.5° |
| E — Effective top tube | 56.3 | 59.3 | 62.2 | 65.5 | 68.4 |
| F — Bottom bracket height | 34.7 | 34.7 | 34.7 | 34.6 | 34.6 |
| G — Bottom bracket drop | 2.6 | 2.7 | 2.7 | 2.7 | 2.7 |
| H — Chainstay length | 44.4 | 44.4 | 44.4 | 44.7 | 45.2 |
| I — Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| J — Trail | 13.8 | 13.8 | 13.7 | 13.7 | 13.7 |
| K — Wheelbase | 121.3 | 124.3 | 127.5 | 131 | 134.1 |
| L — Standover | 76.3 | 75.7 | 76 | 76.4 | 77.3 |
| M — Frame reach | 41.8 | 44.8 | 47.3 | 49.8 | 51.8 |
| N — Frame stack | 63.3 | 63.3 | 64.7 | 66.1 | 67.4 |
| Size | Rider Height | Inseam |
|---|---|---|
| Small | 155 - 165 cm / 5'1" - 5'5" | 74 - 78 cm / 29" - 31" |
| Medium | 165 - 177 cm / 5'5" - 5'10" | 79 - 83 cm / 31" - 33" |
| Large | 177 - 188 cm / 5'10" - 6'2" | 84 - 89 cm / 33" - 35" |
| X-Large | 188 - 195 cm / 6'2" - 6'5" | 89 - 91 cm / 35" - 36" |
| XX-Large | 195 - 203 cm / 6'5" - 6'8" | 91 - 97 cm / 36" - 38" |
Specs
| Frame | OCLV Mountain Carbon, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm |
|---|---|
| Fork | Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel |
| Rear Shock | Fox DHX2, 205mm x 65mm |
| Wheels |
Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29'' |
| Tires |
Front: Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' Rear: Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5'' |
| Crankset | E*thirteen E*spec Plus, 160mm length |
| Chainrings | E*Thirteen Helix Core Steel 32t steel, 55mm chainline |
| Shifters | Shimano XT Di2 M8250, 12 speed |
| Rear Derailleur | Shimano XT Di2 M8260, 12 speed |
| Cassette/Freewheel | Shimano XT M8200, 10-51, 12 speed |
| Chain | Shimano Ultegra/XT M8100, 12 speed |
| Brakes | Shimano XT M8200 4-piston hydraulic disc |
| Rotors | Shimano RT86, 6-bolt, 203mm |
| Handlebars | Race Face ERA, carbon, 35mm, 40mm rise, 800mm width |
| Tape/Grips | Trek Line Elite, lock-on |
| Stem | Bontrager Elite, 35mm, 0 degree, 45mm length |
| Seatpost | Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length Size: M Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Size: XL, L, XXL Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 515mm length |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Pedals | Sold Separately |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| Battery | TQ 580Wh |
| Controller/Display | TQ color LED display with Bluetooth & ANT+ connectivity |
| Charger | TQ 4A charger |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Navy Smoke/Matte Trek Black / Large / 29-inch | 197216280040 | 5341046 | FUE508448176 |
